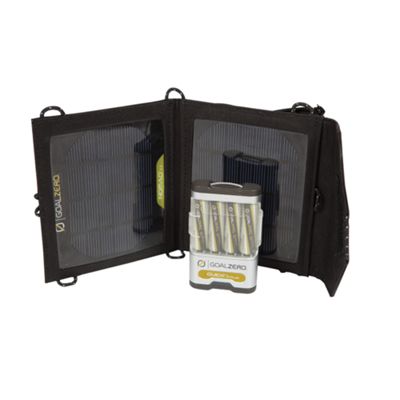

DECENT FEATURES of the Goal Zero Guide 10 Plus Mobile Kit

Inputs

• USB-mini port: 5V, 0.7A max (3.5W)
• Solar port: 6.5V, 1.5A max (7W)
• Solar Panel: Rated Wattage: 3.5W
• Cell Type: Monocrystalline
• Open-circuit voltage: 6.5-7V
• Converting Efficiency: 17-18%
• Cell Area: 0.0199 m2

• Batteries: 4 x AA or AAA** NiMH cells
• USB Standard Port: 5.0V, 1.0A max (5W)
• Flashlight: 100mW white LED, 100+ hours*
• USB Port: 5V, 0.5A max (2.5W), linear regulated
• Solar Port (for Guide 10): 6-6.5V, 0.5A max (3.0W), not regulated

• Battery Capacity: 10 Wh*, use only NiMH cells
• Life-span: hundreds of cycles*
• Shelf Life: 12 months*

The SPECS

• Weight w/Batteries for Guide 10 Plus: 0.4 lbs (0.18 kg)
• Dimensions for Guide 10 Plus: 2.5 x 4 x 0.75 in (6 x 10 x 2 cm)
• Weight for Nomad 3.5: 0.5 lbs (0.22 kg)
• Dimensions for Nomad 3.5 (folded): 7 x 5.5 x 1 in (12.7 x 13.9 x 2.5 cm)
• Dimensions for Nomad 3.5 (unfolded): 14 x 7 x 0.5 in (33.5 x 12.7 x 1.2 cm)
