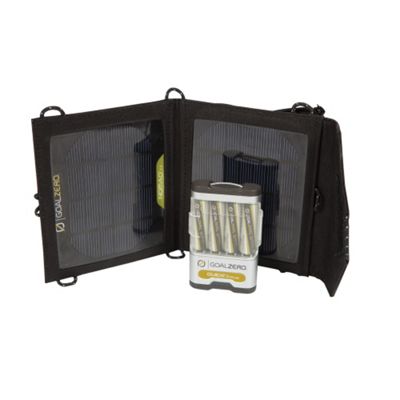

DECENT FEATURES of the Goal Zero Guide 10 Plus Adventure Kit

Inputs

• USB-mini port: 5V, 0.7A max (3.5W)
• Solar port: 6.5V, 1.5A max (7W)
• Solar Panel: Rated Wattage: 7W
• Cell Type: Monocrystalline
• Open-circuit voltage: 6.5-7V
• Converting Efficiency: 17-18%
• Cell Area: 0.0394 m2

• Batteries: 4 x AA or AAA** NiMH cells
• USB Standard Port: 5.0V, 1.0A max (5W)
• Flashlight: 100mW white LED, 100+ hours*
• USB Port: 5V, 0.5A max (2.5W), linear regulated
• 12V Port: 13-15V, 0.2A max (3W), boost regulated
• Solar Port (for Guide 10): 6-6.5V, 1.0A max (6W), not regulated

• Battery Capacity: 10 Wh*, use only NiMH cells
• Life-span: hundreds of cycles*
• Shelf Life: 12 months*

The SPECS

• Weight w/Batteries for Guide 10: 0.4 lbs (0.18 kg)
• Dimensions for Guide 10: 2.5 x 4 x 0.75 in (6 x 10 x 2 cm)
• Optimal Operating Temperature for Guide 10: 32-104 F (0-40 C)
• Weight for Nomad 7: 0.8 lbs (0.36 kg)
• Dimensions for Nomad 7 (Folded): 6 x 9 x 1 in (15 x 26 x 2.5 cm)
• Dimensions for Nomad 7 (Unfolded): 17 x 9 x 0.1 in (43 x 23 x 0.25 cm)
• Optimal Operating Temperature for Nomad 7: 0-120 F (-17-48 C)
